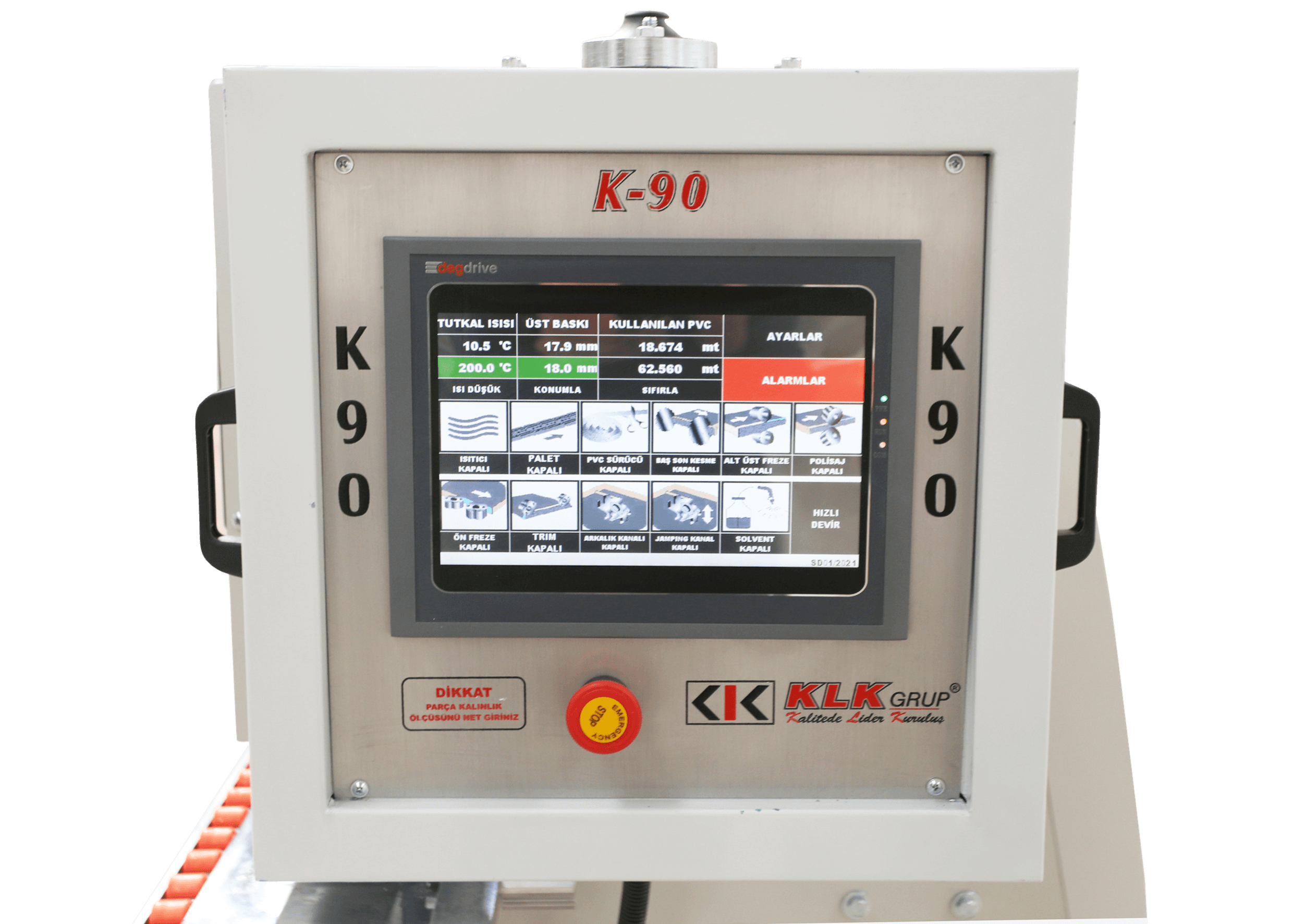

PLC Screen - Due Speed (14-20 Mnt/Mt) - Pre Milling DIA - Head-End Cutting - Top-Bottom Milling - Rounding Radius Scraping - Grooving Unit With Jumping System - Solvent - Polishing - Automatic Pressure - Pallet With Spindle
|
TECHNICAL SPECIFICATIONS |
Glue heating time (Average) |
20 minute |
|
Squeeze thickness |
0,40 x 3 mm |
|
|
Squeeze height |
60 mm |
|
|
Part Dimensions to be Squeezed |
120 x 150 mm |
|
|
Operating speed (per minute) |
14 m - 20 m |
|
|
pre milling engine speed |
12.000 rpm (DİA) |
|
|
Front-end cutting engine speed |
12.000 rpm |
|
|
DIMENSIONS |
Front-end cutting saws |
80 x20 |
|
milling engine speed (per minute) |
12.000 rpm |
|
|
milling knife |
6 blades R 3 |
|
|

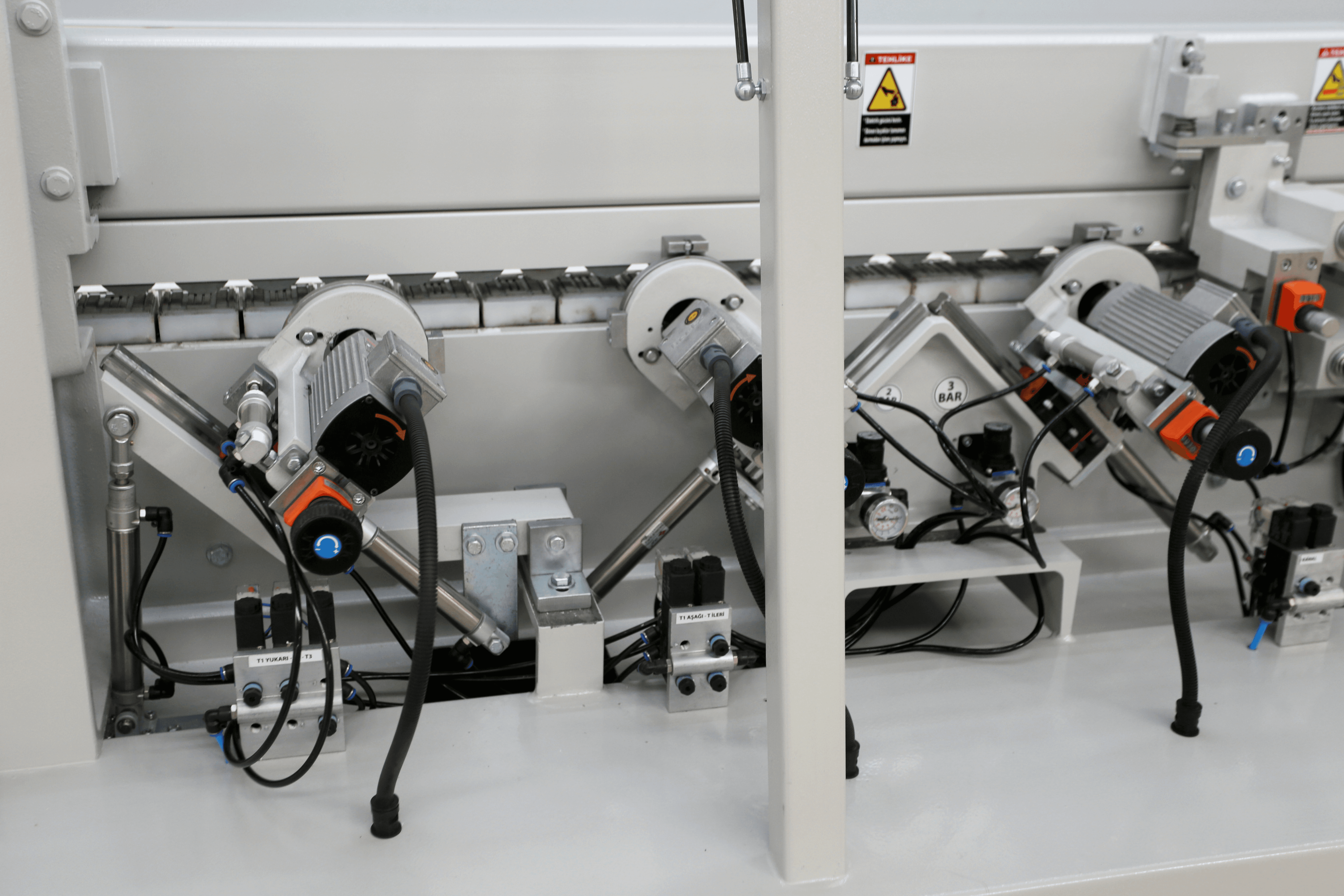

Trim motors X3 |
12.000 rpm |
|
|
Trim blades |
6 blades R 3 |
|
|
radius scraping |
R 3 |
|
|

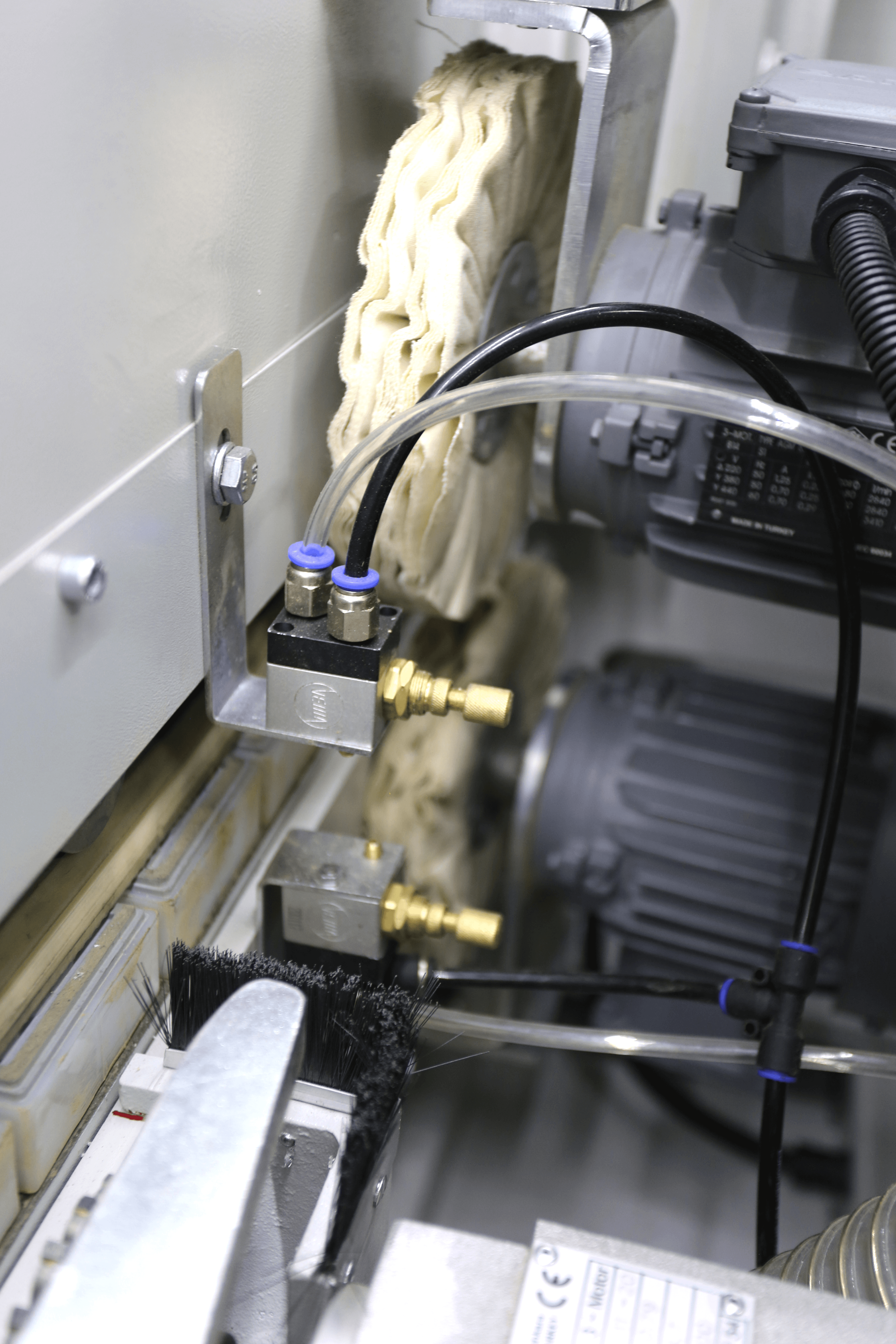

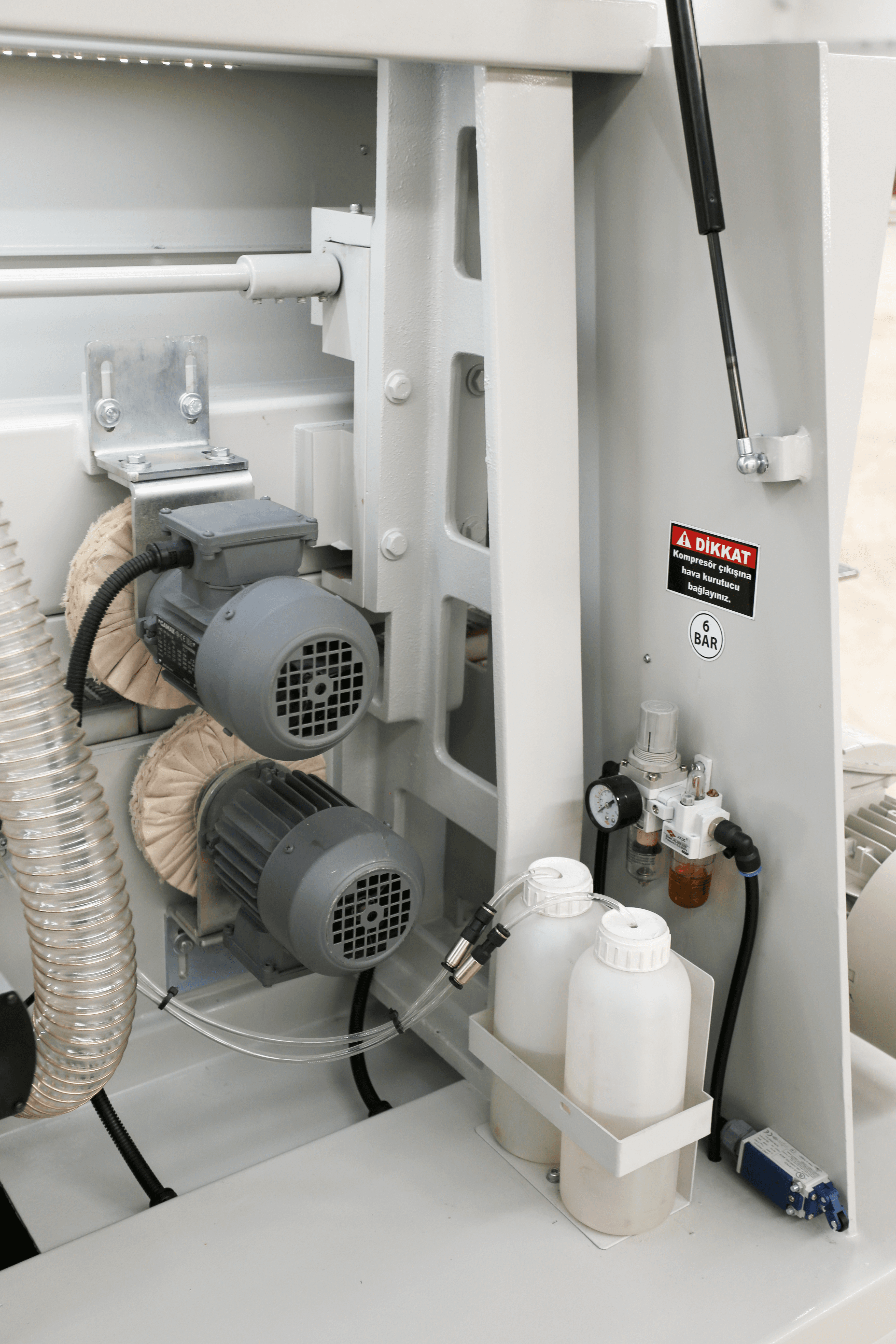

Polishing engine speed |
3.000 rpm |
|
|
Grooving saw engine speed |
12000 rpm |
|
|
Grooving saw |
90 x 9 mm |
|
|
Eletric power |
17 kW |
|
|
Reducer Speed (Per minute) |
30 rpm |
|
|
Pneumatic bar pressure |
7 ATÜ |
|
|
Glue tank volume |
3 kgs |
|
|
Lenght |
5600 mm |
|
|
Width |
800 mm |
|
|
Height |
1600 mm |
|
|
Weight (Average) |
2300 kgs |
